LINEAR CEILING SYSTEMS
Wood Grain Aluminum Baffle Ceiling
Wood grain U-shaped aluminum ceiling baffles with heat-transfer finishes, custom cut lengths and 0.4–1.5 mm thickness. OEM/ODM manufacturing in Foshan.
Heat-transferWood grain finish
0.4–1.5 mmWall thickness
CustomCut length
Roll-formed U-shaped profiles · made in Foshan · OEM / ODM available.
✓ OEM / ODM customization✓ Factory in Foshan, China
01 / PRODUCT OVERVIEW & INSTALLATION
Wood character. A precise aluminum profile.

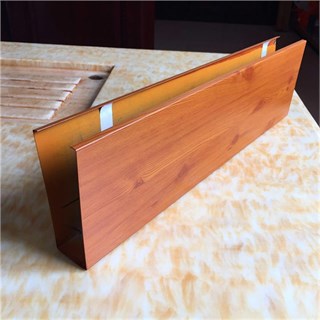

Wood grain aluminum baffle ceilings combine an open U-shaped aluminum profile with a heat-transfer woodgrain finish. The linear ceiling brings a warm visual rhythm to hotel lobbies, restaurants, retail interiors and reception areas.
Profiles are continuously roll-formed from AA1100 or AA3003 aluminum coil. Specify 0.4–1.5 mm wall thickness, a 20–300 mm bottom width and a 20–200 mm height, with lengths cut to the ceiling plan. Confirm the wood tone, grain direction and visible joints against a physical sample before production.
Procurement & installation details
01
Select the woodgrain
Agree the grain pattern and permitted color variation with a physical sample.
02
Coordinate the ceiling lines
Set profile direction, clear spacing and cut lengths around lighting and access points.
03
Clip into matching carriers
Suspension rods and carrier rails support the clip-in U-shaped baffles; selected profiles can be removed for access.
02 / TECHNICAL DATA
Specifications, clearly defined.
| Parameter | Specification / options |
|---|---|
| Product | Wood Grain Aluminum Baffle Ceiling |
| Profile | Open U-shaped aluminum baffle; continuously roll-formed from coil |
| Alloy | AA1100 / AA3003 aluminum alloy |
| Wall thickness | 0.4–1.5 mm |
| Bottom / opening width | 20–300 mm; customizable |
| Profile height | 20–200 mm; customizable |
| Length | Custom cut lengths to the approved drawings |
| Specified finish | Heat-transfer woodgrain; grain pattern, tone and direction to an approved sample |
| Procurement details | Wood tone, grain direction, profile orientation and joint positions |
| Dimensional tolerance | ±1 mm |
| Installation | Clip-in carrier rails with matched hangers and suspension rods |
| Origin / customization | Foshan, Guangdong, China; OEM / ODM available |
Product ranges supplied by the manufacturer. Confirm the section, cut lengths, finish sample and complete suspension layout in the approved drawings and written quotation.
03 / SURFACE & COLOR
A finish that fits your architecture.
Approve a physical sample for color, texture and sheen. Screen colors and product images are illustrative.
Solid-color alternatives
White, black and grey powder-coated options for adjacent ceiling zones.
Metallic alternatives
Metallic appearance and coating route to an approved finish sample.
Custom finish brief
Provide your woodgrain reference or PANTONE / RAL reference for a solid-color alternative.
Standard colors available. PANTONE / RAL custom color matching supported. Woodgrain and stone-effect finishes are optional. Approve a physical sample for the final color, texture and sheen; screen swatches are illustrative.
04 / WHERE IT WORKS
Designed for real architectural needs.
Transit interiors
Education spaces
Leisure interiors
Dining spaces
05 / FROM DRAWING TO DELIVERY
A clear path to your finished product.
Sample approval and written specifications keep material, finish and fabrication aligned.
- 01
Send drawings
CAD / PDF files, quantity, location and finish brief.
- 02
Review & quote
Confirm material, dimensions, details and commercial terms.
- 03
Approve a sample
Review finish, color, critical sizes and shop drawings.
- 04
Produce & inspect
Fabricate, finish and check against the approved order.
- 05
Pack & deliver
Protect, identify and pack for the agreed export shipment.
EXPORT PACKING
Protective surface layers, edge protection and suitable outer packing are agreed for the product and route. Part identification, packing lists and handling requirements are confirmed before shipment.
EXPLORE OTHER CATEGORIES
More products.
Is the profile made of timber?
No. The U-shaped profile is roll-formed aluminum with a heat-transfer woodgrain surface.
How do I specify the woodgrain?
Send a finish reference or sample and indicate the ceiling direction. Approve the tone, grain appearance and acceptable variation before production.
Can I request a sample and a custom quotation?
Yes. Send your drawing, estimated quantity, finish reference and delivery destination. Sample cost, minimum order, tooling, lead time and any warranty are confirmed in the written quotation.
