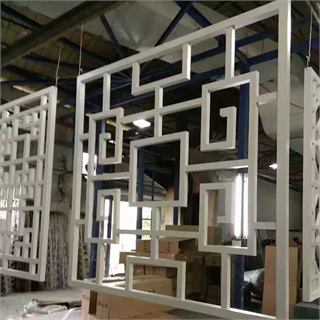

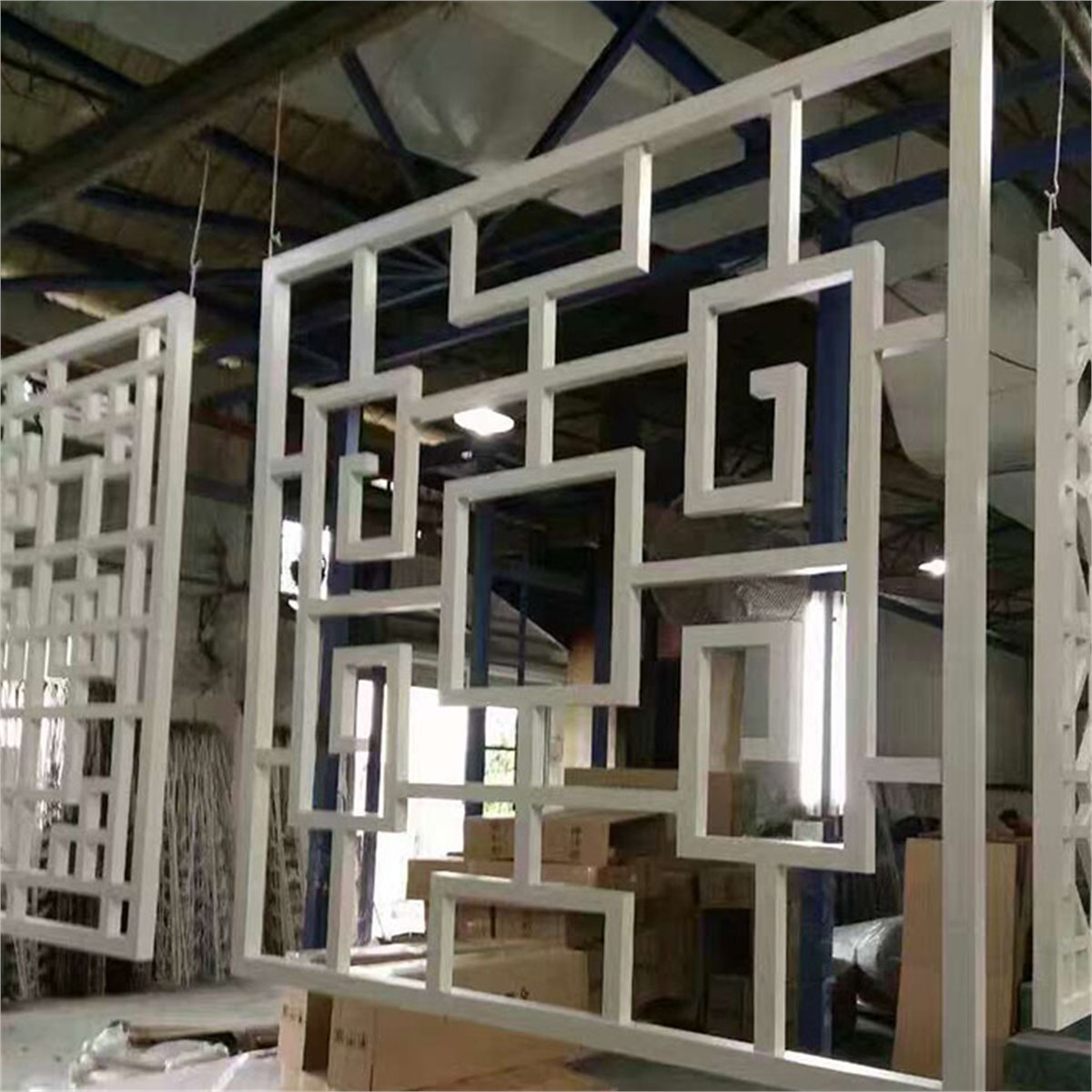

Open geometric panels
Pattern, frame dimensions and finish to the approved project specification.
DECORATIVE GRILLES / CUSTOM ARCHITECTURAL METAL
Aluminum Window Grilles
ALUPANELIX / AS–01
A pattern for your architecture.
Custom aluminum window grilles and decorative screens for windows, facades and partitions. Choose lattice patterns, laser-cut designs, frames and finishes to your drawings.
- Reference cut-sheet gauge
- 2.0–5.0 mm
- Pattern & frame
- Custom CAD
- Finish options
- Powder / PVDF
Custom patterns & frames · OEM / ODM support · Foshan, China.
Product & application reference photos · dimensions, material and finishes to approved samples.
01 / APPLICATION SHOWCASE
Decorative detail, at architectural scale.
Develop a consistent pattern for windows, building screens and spatial dividers. Coordinate the grille modules with the surrounding architecture.
01
Decorative window grilles
02
Facade screening
03
Landscape partitions
04
Interior feature dividers
02 / GRILLE STYLES
Choose a pattern. Make it your own.
Explore the supplied grille references, from open geometric frames to decorative lattice panels. Dimensions, material and finishes follow approved drawings and samples.

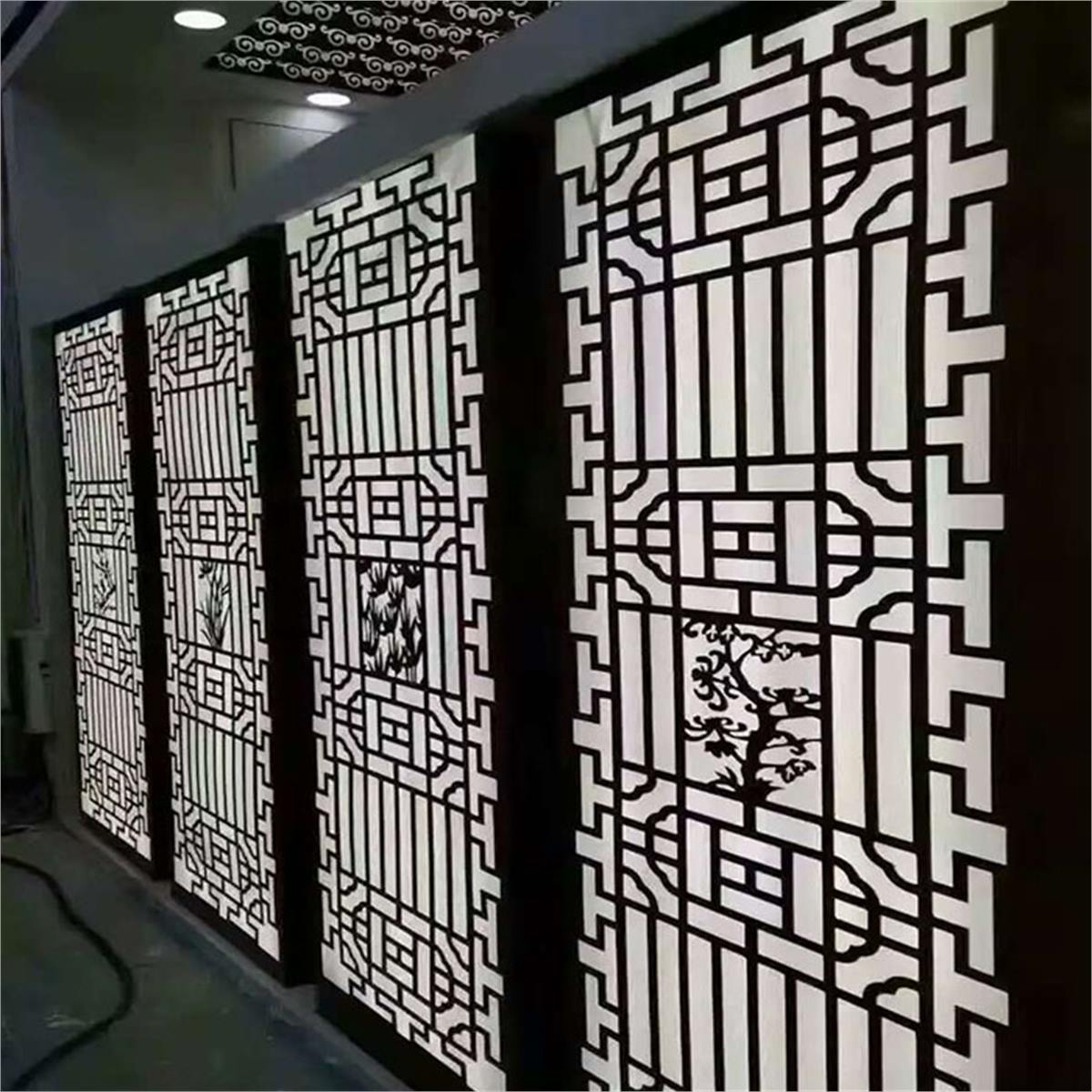

Decorative lattice
Pattern, frame dimensions and finish to the approved project specification.

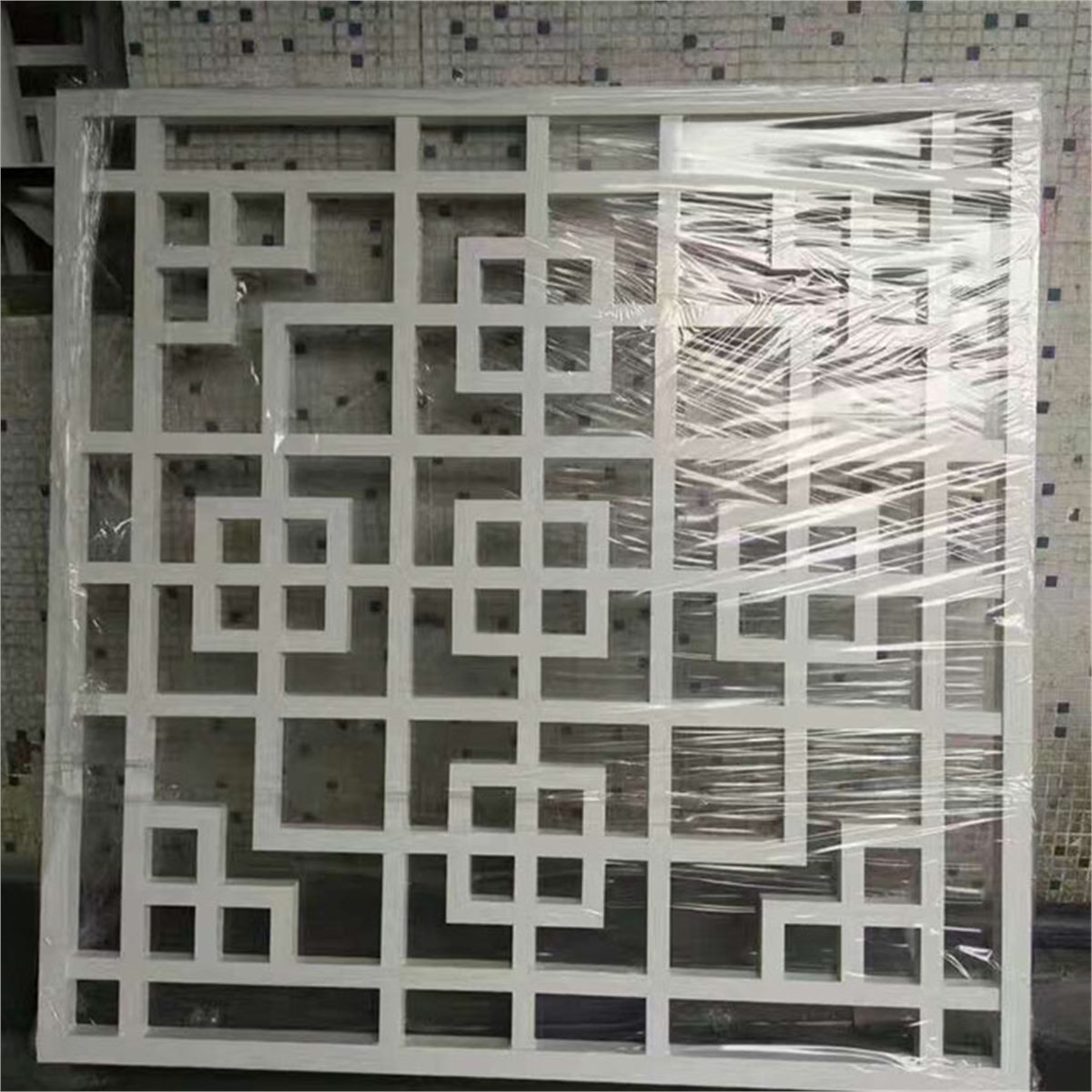

Square pattern frame
Pattern, frame dimensions and finish to the approved project specification.

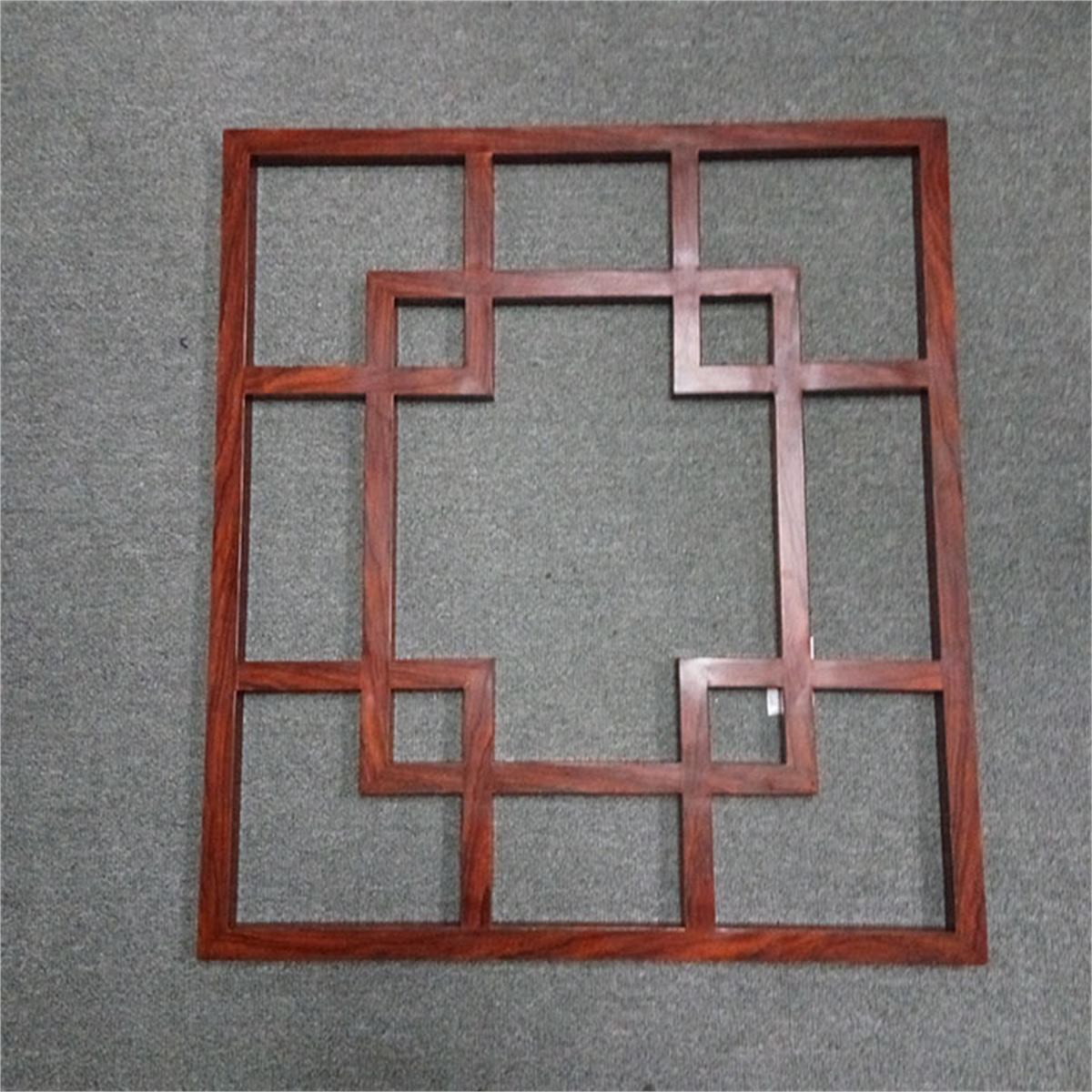

Wood-tone frame
Pattern, frame dimensions and finish to the approved project specification.

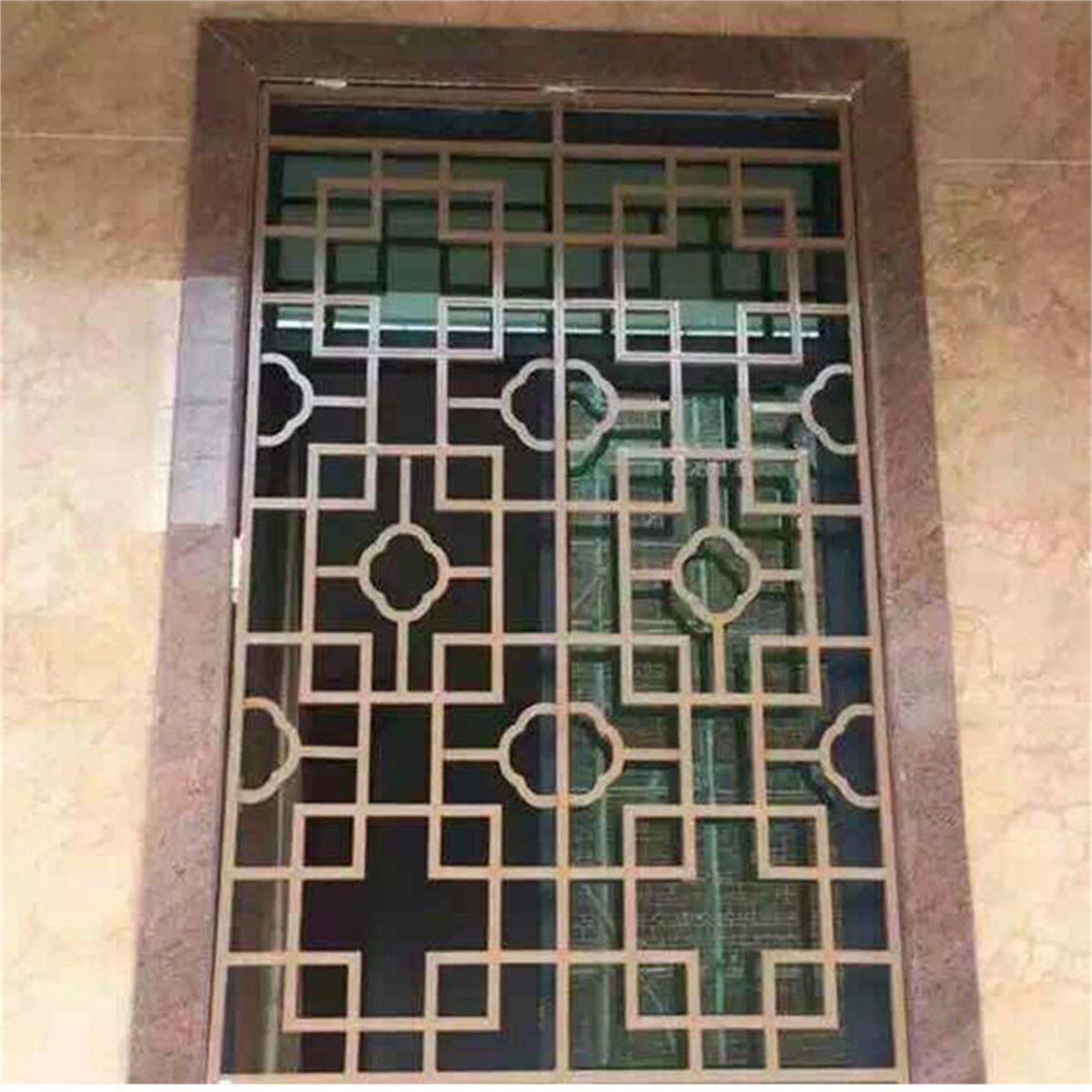

Window application
Pattern, frame dimensions and finish to the approved project specification.
Product reference photos · final geometry and finish to approved samples.
03 / PRODUCT DETAILS
Designed from the pattern to the frame.
Pattern & cut edges
Coordinate cutout shapes, remaining bridges and edge finishing for the approved pattern.
Frame & fixing zones
Define solid borders, supporting frames and connection positions before fabrication.
Panel alignment
Set the module size, pattern direction and joint positions across the elevation.
Surface appearance
Approve color, texture and sheen together with the pattern sample.
04 / CUSTOMIZATION
Your pattern, dimensions and finish.
Pattern & openness
Select a lattice or decorative motif, or send your own CAD artwork. Review the cutout layout, remaining metal and alignment across panel joints.
Frame & dimensions
Define opening size, overall grille dimensions, panel divisions, frame sections and fixing zones as one drawing package.
Finish & color
Specify a coating route for the location, with a RAL / PANTONE reference or physical sample. Confirm the visible faces, texture and sheen.
Share an opening size, pattern reference or CAD drawing to start your project.
Discuss your window grilles05 / DIMENSIONS & MATERIAL
Size the grille around the opening.
| Sheet alloy options | Sheet thickness | Overall size | Frame construction | Pattern layout |
|---|---|---|---|---|
| AA3003 / AA5052 | 2.0–5.0 mm | To opening & drawing | Folded / independent frame to design | Custom CAD artwork |
Preliminary sheet-cut grille references. Profile-built grilles, pattern bridges, panel size and supports require separate section and project review.
View complete technical specifications
| Parameter | Specification / options |
|---|---|
| Construction | Laser-cut aluminum sheet with folded edges or an independent frame; profile-built grilles to drawing |
| Common sheet alloy | AA3003 / AA5052 as initial selection options; alloy and temper to approved specification |
| Cut-sheet thickness | 2.0 / 2.5 / 3.0 / 4.0 / 5.0 mm — reference options |
| Reference sheet formats | 1,220 × 2,440 / 1,500 × 3,000 mm; finished modules and support layout reviewed per drawing |
| Pattern options | Geometric lattice, floral designs, abstract patterns and customer CAD artwork |
| Open area / minimum ligament | Defined from pattern, panel size and design loads; no universal minimum assumed |
| Frame / profile | Welded, mechanical or folded construction; section sizes and wall thickness to design |
| Panel edges | Deburred cut edges; cut-outs, fixing zones and frame connections to drawing |
| Surface treatment | Powder coating, PVDF, woodgrain or stone-effect treatment |
| Typical film thickness | Powder 60–80 μm or two-coat PVDF 25–35 μm as reference targets |
| Color / texture | RAL references, metallic finishes or sample matching |
| Fixing / reinforcement | Project-specific frame, bracket and anchor design; wind loads and supports coordinated |
| Use classification | Decorative screen; any balustrade, fall-protection or security function requires separate engineered approval |
| Inspection | Pattern geometry, edge quality, frame square, fixing fit, dimensions and coating |
| Packing | Individual surface protection and edge / frame support to an agreed export packing plan |
| Order / delivery | Pattern sample, quantity, tooling, lead time and warranty agreed in the quotation |
Schematic elevation · fixing and installation details must follow the approved project drawings.
06 / DRAWING & INSTALLATION DETAILS
Resolve the frame and fixings together.
Provide the opening, grille elevation and supporting construction so the pattern, frame and fixing zones can be coordinated before fabrication.
- Confirm opening dimensions and installation clearances.
- Define frame sections, solid borders and pattern direction.
- Locate brackets and anchors for the actual substrate.
- Review access, drainage and maintenance clearances.
07 / SURFACE FINISHES
Match the finish to your design.
Review the application environment, cut edges, frame connections and visible surfaces. Color, texture and sheen follow the approved physical sample.
Powder coating
Solid colors and textures selected for the intended location.
PVDF coating
Color, coating system and exposure requirements to written specification.
Woodgrain effects
Wood tone and pattern selected by physical sample and process review.
Custom colors & effects
RAL / PANTONE matching and other agreed decorative effects.
08 / PRODUCT DOWNLOADS
Prepare your grille specification.
09 / FROM DRAWING TO DELIVERY
A clear path to your finished product.
Sample approval and written specifications keep material, finish and fabrication aligned.
- 01
Send drawings
CAD / PDF files, quantity, location and finish brief.
- 02
Review & quote
Confirm material, dimensions, details and commercial terms.
- 03
Approve a sample
Review finish, color, critical sizes and shop drawings.
- 04
Produce & inspect
Fabricate, finish and check against the approved order.
- 05
Pack & deliver
Protect, identify and pack for the agreed export shipment.
EXPORT PACKING
Protective surface layers, edge protection and suitable outer packing are agreed for the product and route. Part identification, packing lists and handling requirements are confirmed before shipment.
EXPLORE OTHER CATEGORIES
More products.
10 / PRACTICAL ANSWERS
Aluminum window grille FAQ.
01Can you work from my pattern?
Yes. Send a dimensioned DXF / DWG or vector artwork, panel sizes and application. Remaining metal, fixing zones and frame requirements are reviewed before approval.
02Can the screen also serve as a balcony guard?
A decorative screen has no automatic guardrail rating. Where fall protection is required, the complete panel, support and anchors need separate structural design and project approval.
03Can aluminum window grilles be used outside?
The alloy, coating, frame and fixings must be reviewed for the project exposure and design loads. Provide the installation location and supporting construction with your drawings.
04How much do custom aluminum window grilles cost?
Price depends on the grille dimensions, material, pattern complexity, frame construction, finish and quantity. Send a drawing and quantity schedule for a project quotation.
05Can I approve a sample before production?
Pattern samples, finish samples and any trial assembly can be agreed during drawing review. Their scope, cost and acceptance criteria are confirmed in the quotation.
