White powder coating
Agree the white shade, texture and sheen with a physical sample.

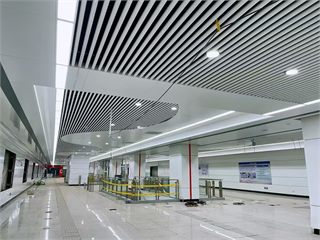

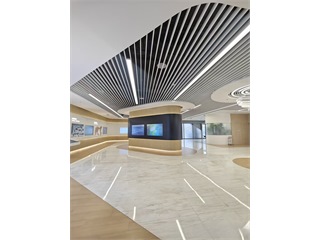

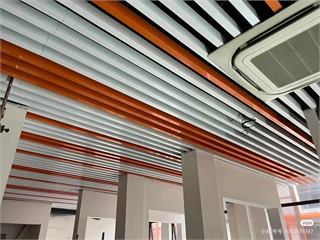

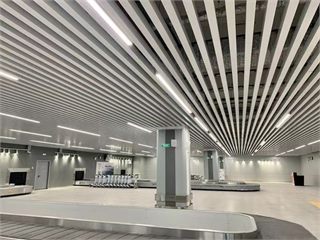

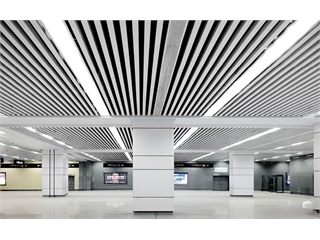

Application reference photos · ceiling layouts and finishes shown for reference.
LINEAR CEILING SYSTEMS
White Aluminum Baffle Ceiling
White powder-coated U-shaped aluminum baffle ceilings for offices, corridors and retail interiors. Custom dimensions, 0.4–1.5 mm thickness and clip-in carriers.
WhitePowder-coated finish
0.4–1.5 mmWall thickness
CustomCut length
Roll-formed U-shaped profiles · made in Foshan · OEM / ODM available.
✓ OEM / ODM customization✓ Factory in Foshan, China
01 / PRODUCT OVERVIEW & INSTALLATION
A light ceiling. Clearly coordinated.
White aluminum baffle ceilings use powder-coated U-shaped profiles to create ordered ceiling lines in offices, corridors, shopping malls and education spaces. The open arrangement can be coordinated with luminaires, sprinklers and access zones.
Choose a white color reference and sheen before sample approval. AA1100 or AA3003 aluminum profiles are continuously roll-formed in 0.4–1.5 mm wall thickness, with 20–300 mm bottom widths, 20–200 mm heights and custom cut lengths. Production color and installation sequence are coordinated with the approved ceiling drawings.
Procurement & installation details
01
Define the white shade
Use a PANTONE / RAL reference or physical sample to agree the white tone and sheen.
02
Plan the service openings
Coordinate baffle direction and spacing with lighting, sprinklers and maintenance access.
03
Install with clip-in carriers
Level the suspended carrier rails, then engage each profile with the matching clips.
02 / TECHNICAL DATA
Specifications, clearly defined.
| Parameter | Specification / options |
|---|---|
| Product | White Aluminum Baffle Ceiling |
| Profile | Open U-shaped aluminum baffle; continuously roll-formed from coil |
| Alloy | AA1100 / AA3003 aluminum alloy |
| Wall thickness | 0.4–1.5 mm |
| Bottom / opening width | 20–300 mm; customizable |
| Profile height | 20–200 mm; customizable |
| Length | Custom cut lengths to the approved drawings |
| Specified finish | White powder coating; white shade and sheen to an approved sample |
| Procurement details | White reference, sheen, ceiling service layout and batch coordination |
| Dimensional tolerance | ±1 mm |
| Installation | Clip-in carrier rails with matched hangers and suspension rods |
| Origin / customization | Foshan, Guangdong, China; OEM / ODM available |
Product ranges supplied by the manufacturer. Confirm the section, cut lengths, finish sample and complete suspension layout in the approved drawings and written quotation.
03 / SURFACE & COLOR
A finish that fits your architecture.
Approve a physical sample for color, texture and sheen. Screen colors and product images are illustrative.
PANTONE / RAL matching
Custom color references for coordinated architectural elements.
Woodgrain alternatives
Optional heat-transfer woodgrain for feature zones.
Metallic alternatives
Metallic effects selected against a finish sample.
Standard colors available. PANTONE / RAL custom color matching supported. Woodgrain and stone-effect finishes are optional. Approve a physical sample for the final color, texture and sheen; screen swatches are illustrative.
04 / WHERE IT WORKS
Designed for real architectural needs.
Transit interiors
Education spaces
Leisure interiors
Dining spaces
05 / FROM DRAWING TO DELIVERY
A clear path to your finished product.
Sample approval and written specifications keep material, finish and fabrication aligned.
- 01
Send drawings
CAD / PDF files, quantity, location and finish brief.
- 02
Review & quote
Confirm material, dimensions, details and commercial terms.
- 03
Approve a sample
Review finish, color, critical sizes and shop drawings.
- 04
Produce & inspect
Fabricate, finish and check against the approved order.
- 05
Pack & deliver
Protect, identify and pack for the agreed export shipment.
EXPORT PACKING
Protective surface layers, edge protection and suitable outer packing are agreed for the product and route. Part identification, packing lists and handling requirements are confirmed before shipment.
EXPLORE OTHER CATEGORIES
More products.
Can I specify a particular white?
Yes. Supply a PANTONE / RAL reference or physical sample. Final color, texture and sheen follow the approved production sample.
Can baffles be removed for maintenance?
The matching clip-in system allows individual profiles to be removed. Coordinate carrier details and service access with the installation drawings.
Can I request a sample and a custom quotation?
Yes. Send your drawing, estimated quantity, finish reference and delivery destination. Sample cost, minimum order, tooling, lead time and any warranty are confirmed in the written quotation.
LET’S BUILD THE DETAILS
Get a project quote.
Discuss your white aluminum baffle ceiling requirements on WhatsApp, or send the section, ceiling layout, quantities and finish reference for a project quotation.
