Metallic colors
Metallic appearance and sheen selected by physical sample.

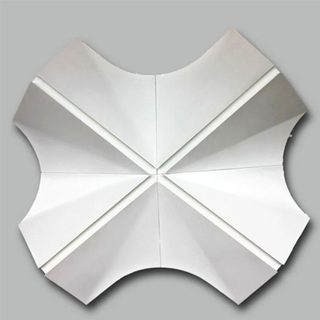

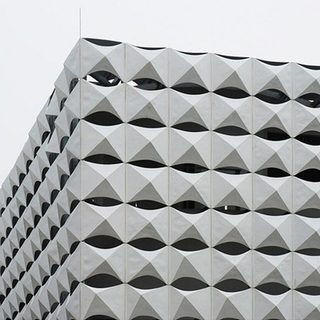

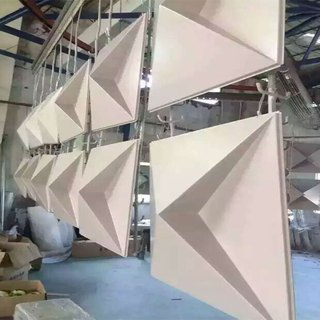

Supplied sculpted-panel & architectural form references · geometry, material and finish follow approved drawings and samples. Reference photos do not independently verify double curvature.
FACADE & CLADDING
Double Curved Aluminum Panels
Double curved aluminum panels for custom facades and architectural surfaces. Submit a 3D model, panel divisions and fixing requirements for forming and quotation review.
Two directionsCurvature
3D modelGeometry review
Project specificFabrication route
Custom panel geometry · dimensions, finish and fixings to approved project drawings.
✓ OEM / ODM customization✓ Factory in Foshan, China
01 / PRODUCT OVERVIEW
Two curved directions. Geometry coordinated in 3D.
Double curved aluminum panels have curvature in two principal directions. Domed, saddle-shaped and other complex surfaces require coordinated panel divisions and geometry, with the fabrication route selected after the project model is reviewed.
Supply the 3D surface model, panel marks, edge details, reference datums and supporting frame information. Tooling, forming or welded construction, reinforcement and surface finishing are reviewed for the particular geometry. Any sample, mock-up, dimensional tolerance or inspection method must be agreed before production.
Panel design & procurement details
01
Review the 3D model
Define panel boundaries and reference datums on the intended finished surface.
02
Agree the fabrication route
Review forming, tooling, joining and reinforcement for each panel family.
03
Plan a mock-up
Confirm surface continuity, fit, finish and inspection criteria before series production.
02 / TECHNICAL DATA
Specifications, clearly defined.
| Parameter | Specification / options |
|---|---|
| Product | Double Curved Aluminum Panels |
| Construction | Solid aluminum sheet; panel form and edge details to approved drawings |
| Panel geometry | Curvature in two principal directions; feasibility subject to 3D model review |
| Alloy | AA3003 / AA1100 reference options; alloy and temper to project review |
| Thickness | 1.5–3.0 mm preliminary selection reference; final value to design review |
| Panel dimensions | Custom face dimensions; forming limits and sheet availability to review |
| Drawing requirements | 3D surface model, panel divisions, edge curves, datums, tooling and support details |
| Edges & reinforcement | Returns, solid borders and stiffeners to approved fabrication drawings |
| Finish options | PVDF, powder coating, woodgrain or other agreed treatment; suitability to sample and exposure review |
| Color & sheen | RAL / PANTONE reference or physical sample; approval before production |
| Fixing design | Panel brackets, subframe, fasteners and design loads coordinated by the project team |
| Inspection | Dimensions, geometry, surface appearance and agreed coating checks |
| Performance documentation | Reports and requirements for the selected complete facade assembly to project specification |
| Order details | Quantity, samples, tooling, lead time, packing and delivery terms confirmed in quotation |
Preliminary selection references. Confirm material, thickness, geometry, finish and the complete support system in approved drawings. Project performance and warranty terms require written confirmation.
03 / SURFACE & COLOR
A finish that fits your architecture.
Approve a physical sample for color, texture and sheen. Screen colors and product images are illustrative.
Solid colors
Powder or PVDF coating route selected for the project exposure.
Woodgrain effects
Decorative woodgrain treatment subject to finish and exposure review.
Custom color references
Provide a RAL / PANTONE reference or physical sample for matching.
Finishes are options across the panel types. Confirm coating route, substrate preparation, exposure requirements, color and sheen with the approved sample and written specification.
04 / WHERE IT WORKS
Curved-form application references.

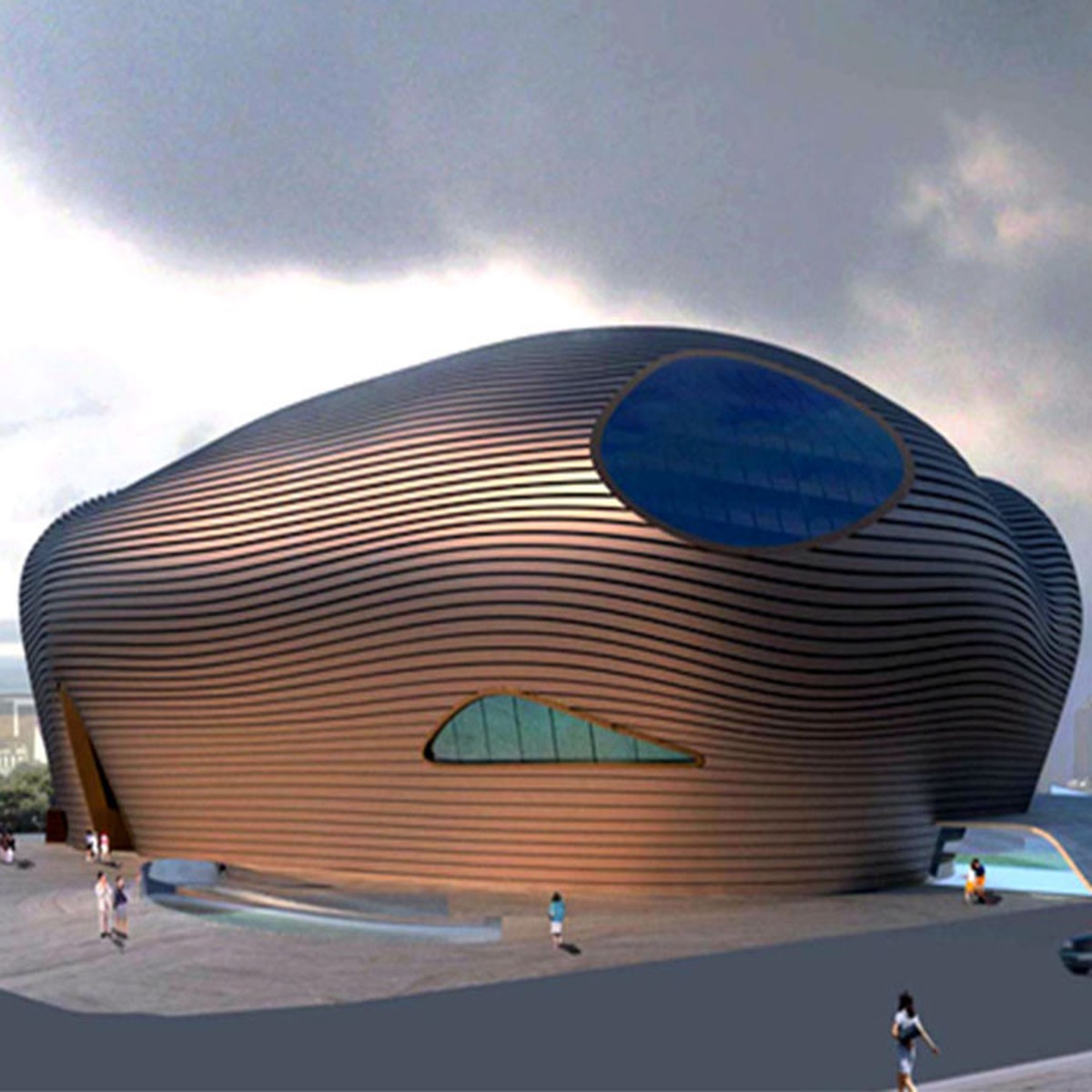

Freeform facade reference

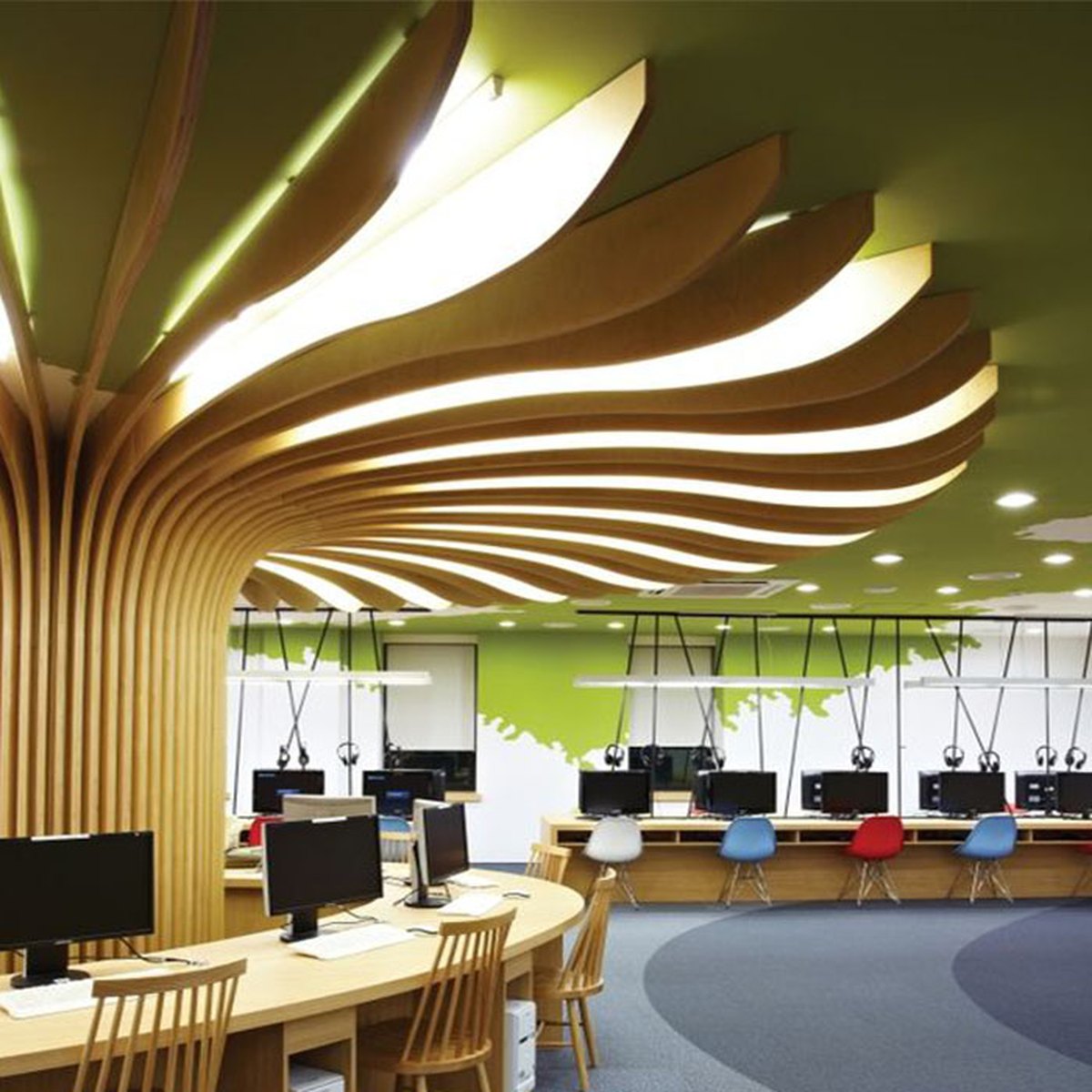

Curved ceiling reference
05 / FROM DRAWING TO DELIVERY
A clear path to your finished product.
Sample approval and written specifications keep material, finish and fabrication aligned.
- 01
Send drawings
CAD / PDF files, quantity, location and finish brief.
- 02
Review & quote
Confirm material, dimensions, details and commercial terms.
- 03
Approve a sample
Review finish, color, critical sizes and shop drawings.
- 04
Produce & inspect
Fabricate, finish and check against the approved order.
- 05
Pack & deliver
Protect, identify and pack for the agreed export shipment.
EXPORT PACKING
Protective surface layers, edge protection and suitable outer packing are agreed for the product and route. Part identification, packing lists and handling requirements are confirmed before shipment.
EXPLORE OTHER CATEGORIES
More products.
How do double curved panels differ from single curved panels?
Double curved surfaces bend in two principal directions. They normally require a 3D surface definition and more detailed fabrication review than a cylindrical panel.
Can every 3D shape be manufactured?
Feasibility depends on curvature, dimensions, alloy, thickness, edge form and available fabrication routes. Geometry, tooling and sample requirements must be reviewed before confirmation.
Is a mock-up required?
A mock-up or trial assembly may be appropriate for complex geometry. Its scope, cost and acceptance criteria are agreed with the project team.
How much do double curved aluminum panels cost?
Price is project specific and depends on 3D geometry, panel divisions, tooling, forming or joining route, mock-ups, finish and quantity. Send the 3D model for feasibility and quotation review.
Can I request a sample and a custom quotation?
Yes. Send your drawing, estimated quantity, finish reference and delivery destination. Sample cost, minimum order, tooling, lead time and any warranty are confirmed in the written quotation.
LET’S BUILD THE DETAILS
Discuss your facade panels.
Send your drawings, panel schedule, quantities, finish and delivery destination for a double curved aluminum panels quotation.
